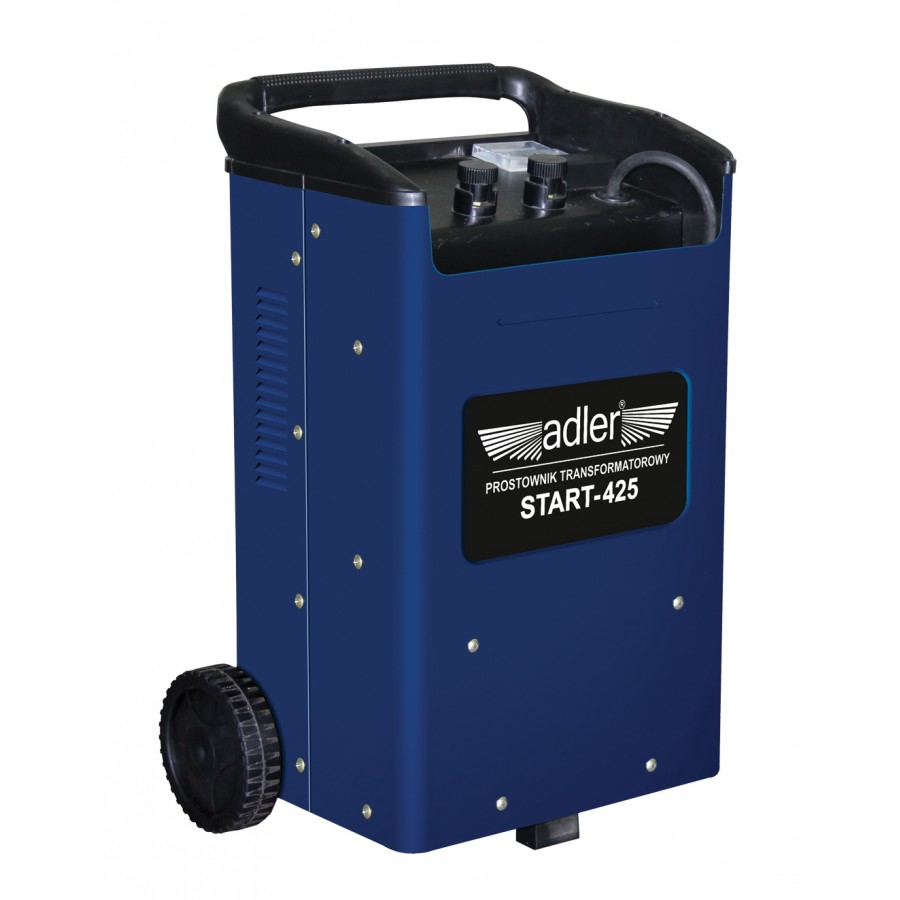

Gleichrichter START 425 E2525

  • NUMBER: E2525
  • EAN: 2000010047611
  • Code CN: 85044090
  • Gewicht: 30.00 KG

Booster Start 425

Description:

The E2525 transformer rectifier is a device for charging lead-acid batteries. It is characterized by ease of use and reliability. The device casing meets the requirements of the IP20 protection class in accordance with the PN-EN 60529: 2003 standard.

E2525 has an ammeter that shows the current charging current. Device equipped with a start-up function. It has a charging timer and a six-position switch for the charging current.

A carefully wound transformer ensures stable and safe charging of the batteries.

Technical data:

Supply voltage (V): 230 V

Power consumption: 1.6 ~ 10 kW

Charging voltage: 12 / 24V

Charging current: 50 A.

Inrush current: 360 A (1V / e)

Number of charging modes: 6

Capacity of rechargeable batteries (Ah - 15h): 50 ~ 800 Ah

Protection: 20A

Housing protection class (according to PN-EN 60529: 2003): IP20

Type of starting of charging connectors: clamps (+) / (-)

Weight: 22.5 kg

Dimensions (lxdxh): 35 x 28 x 57 cm
