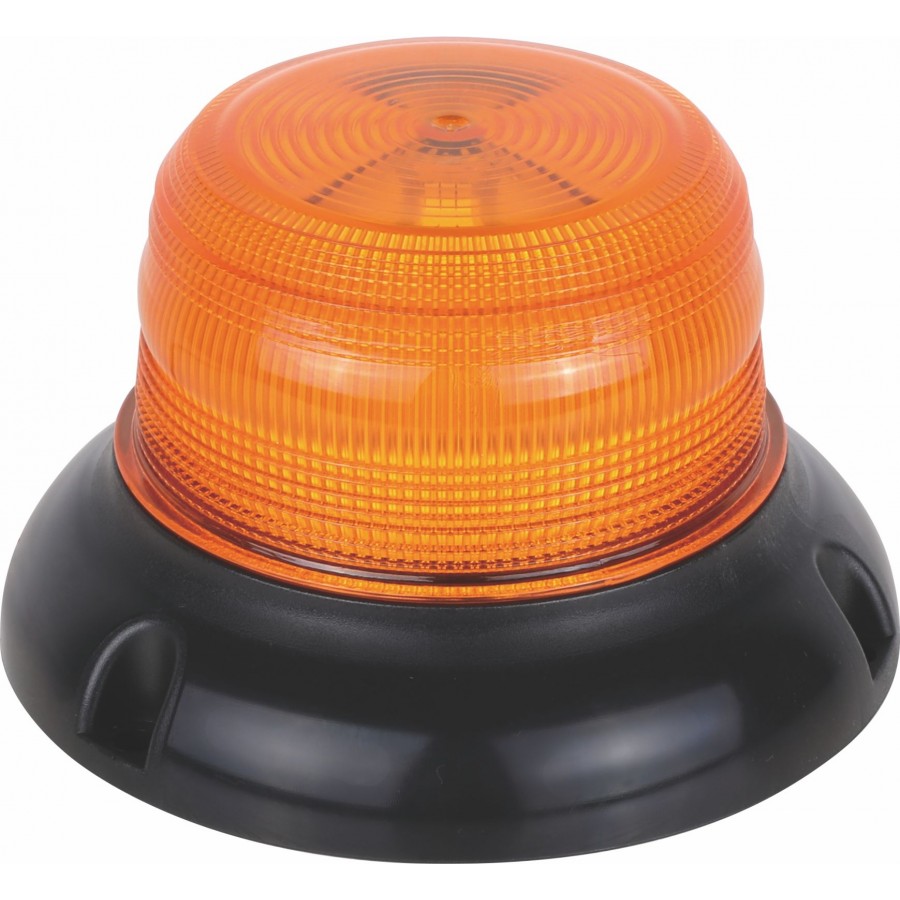

LED warning lamp for forklift 10-110V R10 LW0045

  • NUMBER: LW0045
  • EAN: 2000010068807
  • Code CN: 85122000
  • Weight: 0.30 KG

LW0045 has features such as: 3 warning flashes. The lamp has 24 LEDs. LW0045 characterized by a power of 25 W. LW0045 is a certified product. According to standards such as ECE R10, CE. Moreover, it is made of materials: Lens: PC, Housing: PC. Fastening is 3 screw. The voltage is 10-110 V. The product is packaged in the following configuration cart. dim.: 110x100x140 mm, lamp weight: 230 g, 20 pcs/bulk box.

Instruction

·• It should be used exclusively in accordance with intended use.

• Mount exclusively in specialized workshops. • The connection between the lamp and vehicle’s installation should be isolated with heat-shrink tube, or, alternatively, with isolating tape, to avoid getting water and moisture to the copper wire of the lamp, which can damage electronic components. When it comes to lamp and plug, the plug should be mounted safely. • Do not cut off tinned ends. • Lamps must be installed only in accordance with UNECE regulations

Specification

, 85122000
LED quantity 24
Material Lens: PC, Housing: PC
Mounting 3 screw
Function 3 warning flashes
Watt 25 W
Voltage 12 V/24 V
Certyficates ECE R10, CE

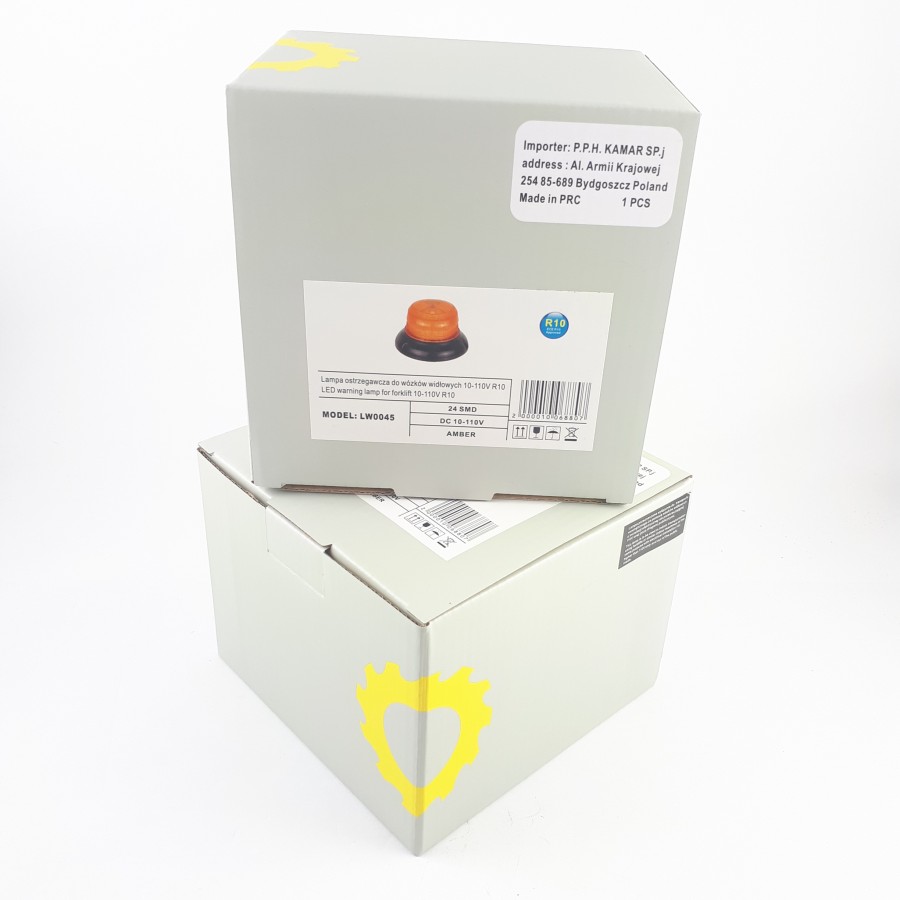

Packing cart. dim.: 110x100x140 mm, lamp weight: 230 g, 20 pcs/bulk box
WIRE 150 mm
