Inizio raddrizzatore 50 E2050

  • NUMBER: E2050
  • EAN: 2000010030941
  • Code CN: 85044090
  • Peso: 12.50 KG

Booster Start 50

Description:

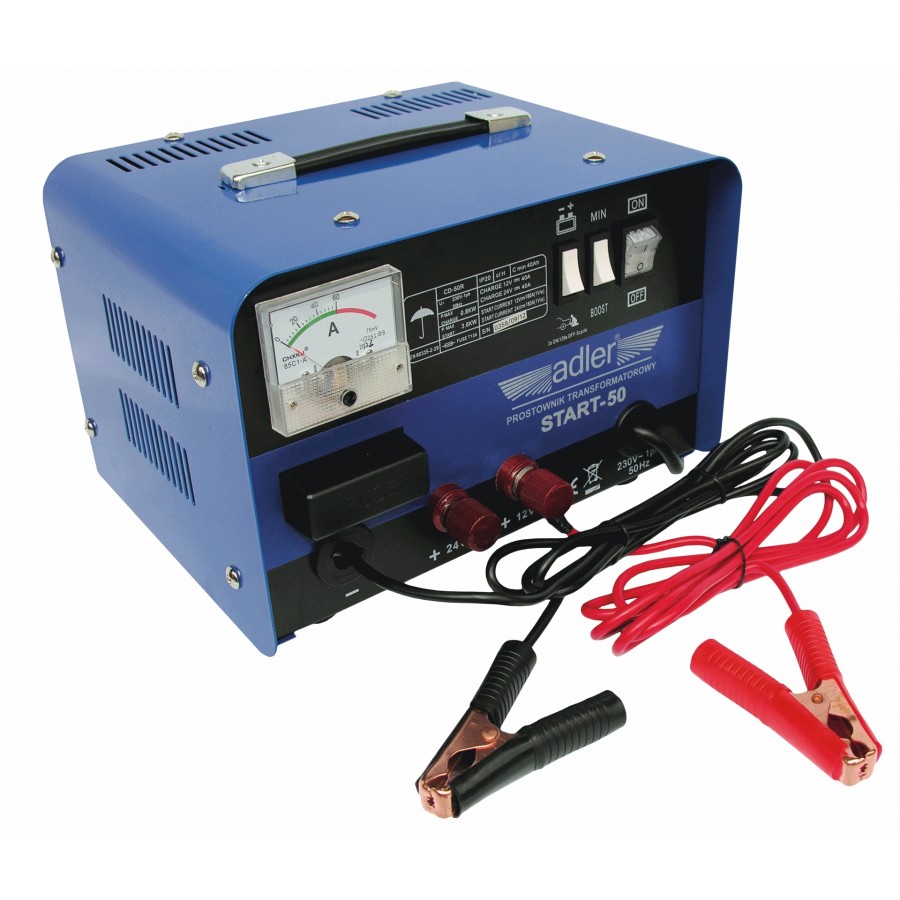

The E2050 transformer rectifier is a device for charging lead-acid batteries. It is characterized by ease of use and reliability. The device casing meets the requirements of the IP20 protection class in accordance with the PN-EN 60529: 2003 standard.



E2050 has an ammeter that shows the current charging current. Device equipped with a start-up function.

A carefully wound transformer ensures stable and safe charging of the batteries.

Technical data:

Supply voltage (V): 230

Power Consumption (kW): 0.8 ~ 3.6

Charging voltage (V): 12/24

Charging current (A): 40

Starting current (A (1V / e)): 180

Number of charging modes: 3

Capacity of rechargeable batteries (Ah - 15h): 40 ~ 700

Protection (A): 16

Housing protection class (according to PN-EN 60529: 2003): IP20

Type of starting of charging connectors: clamps (+) / (-)

Weight (kg): 14.5

Dimensions (lxdxh): 32.5 x 31 x 21.5 cm
