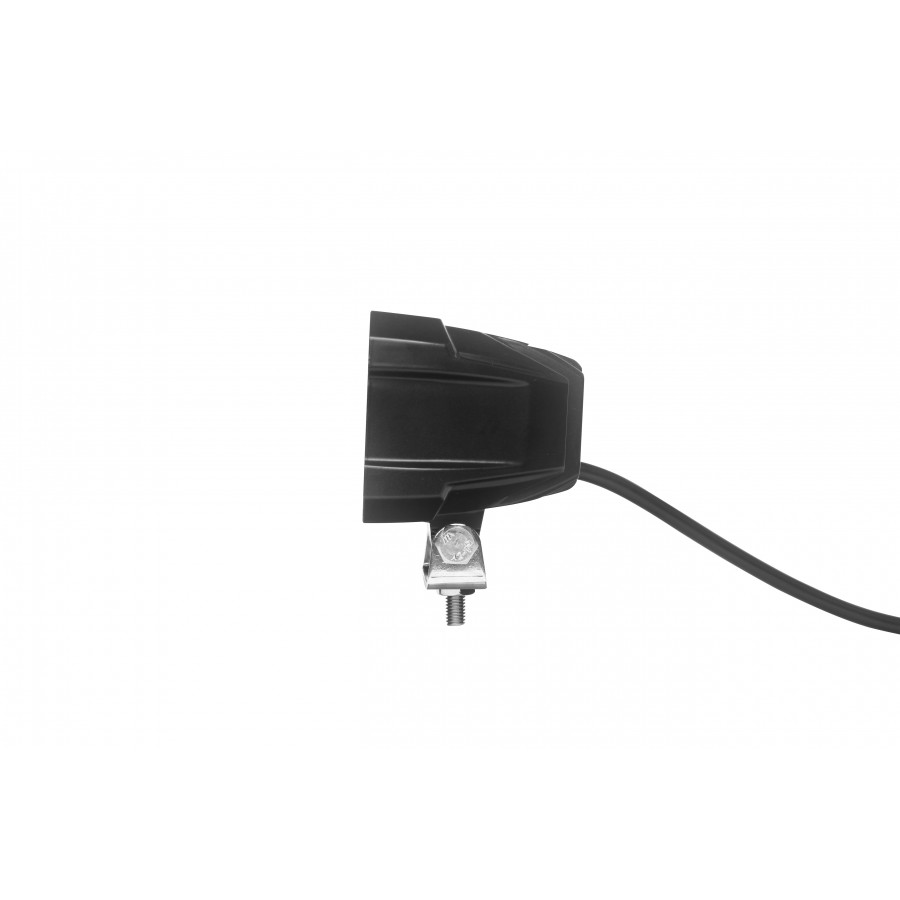

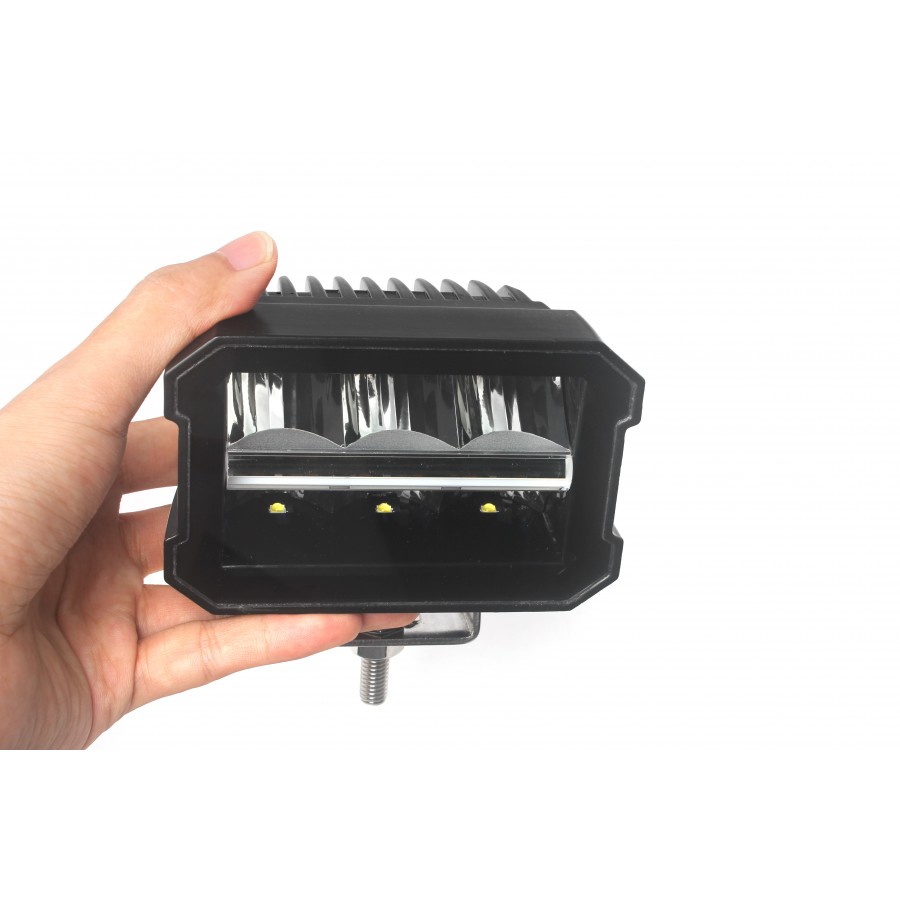

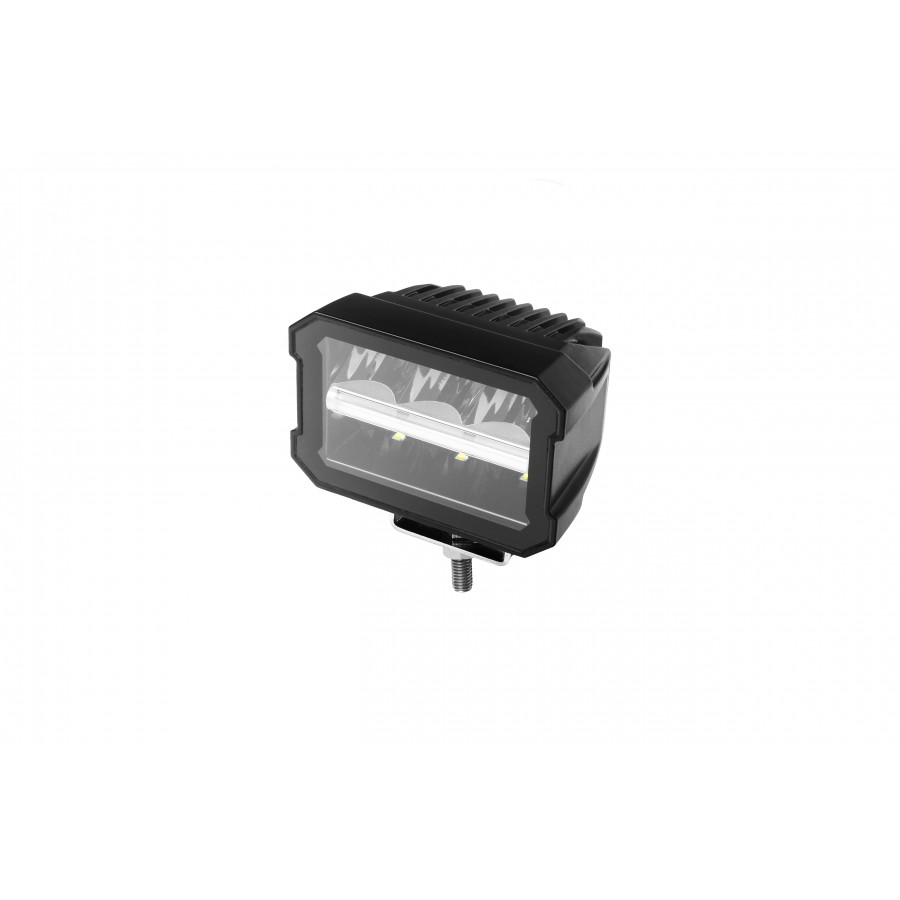

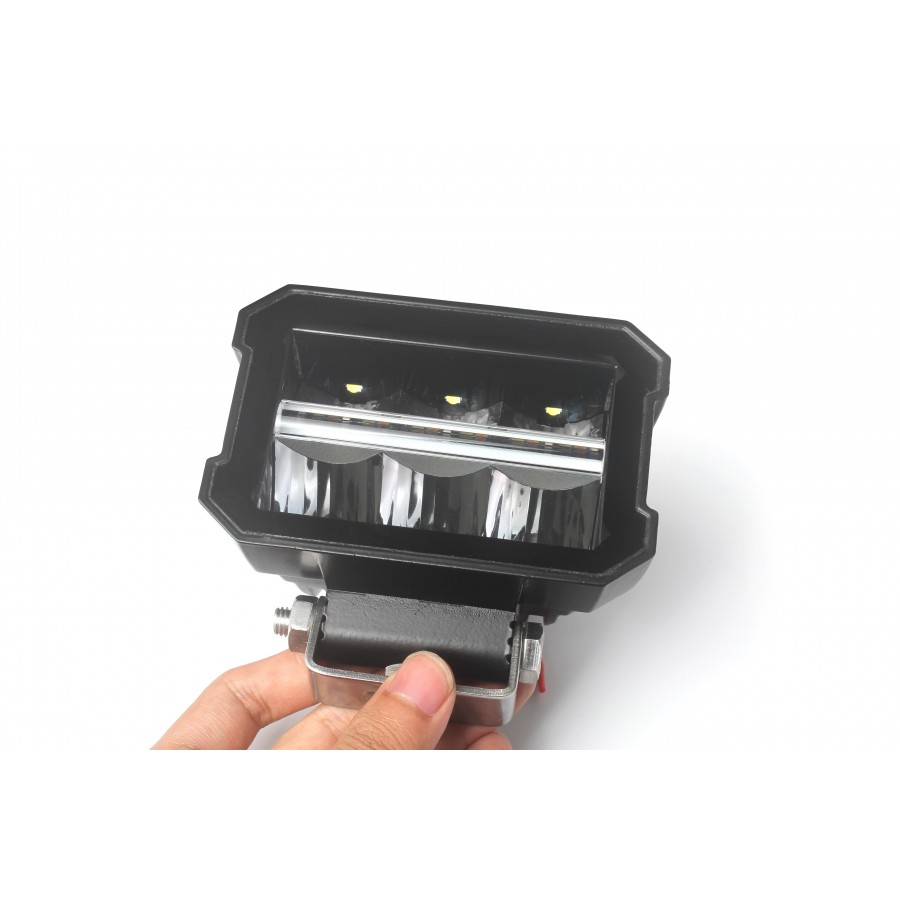

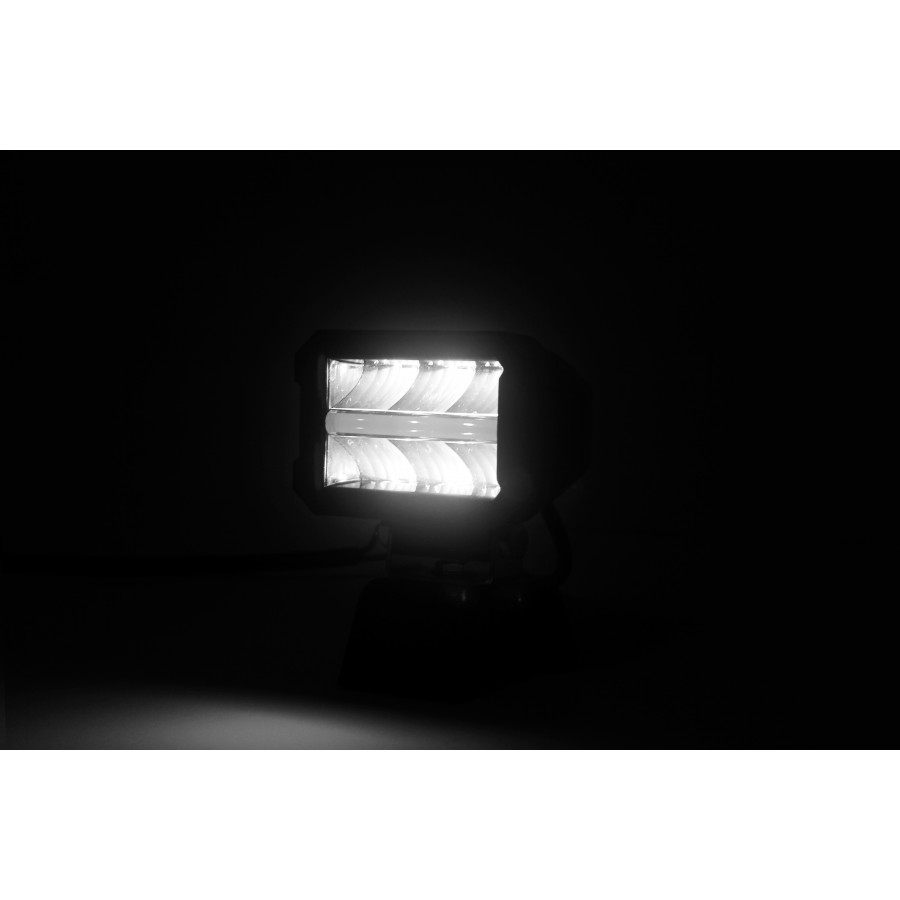

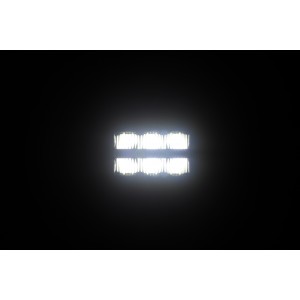

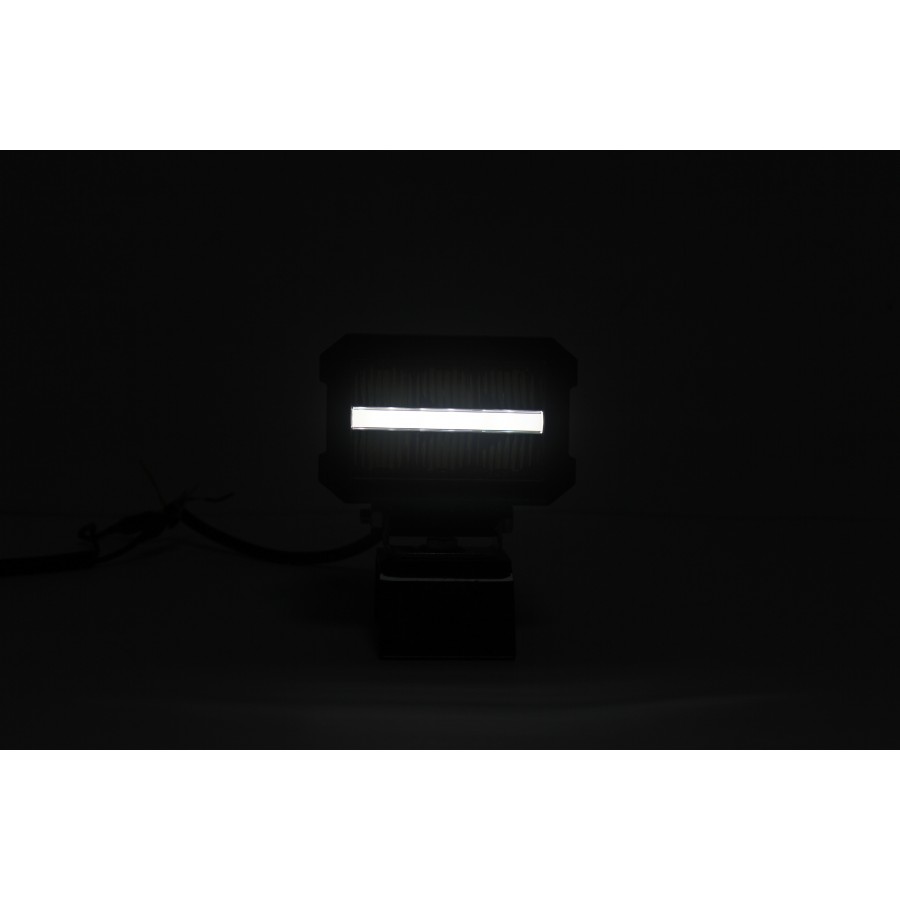

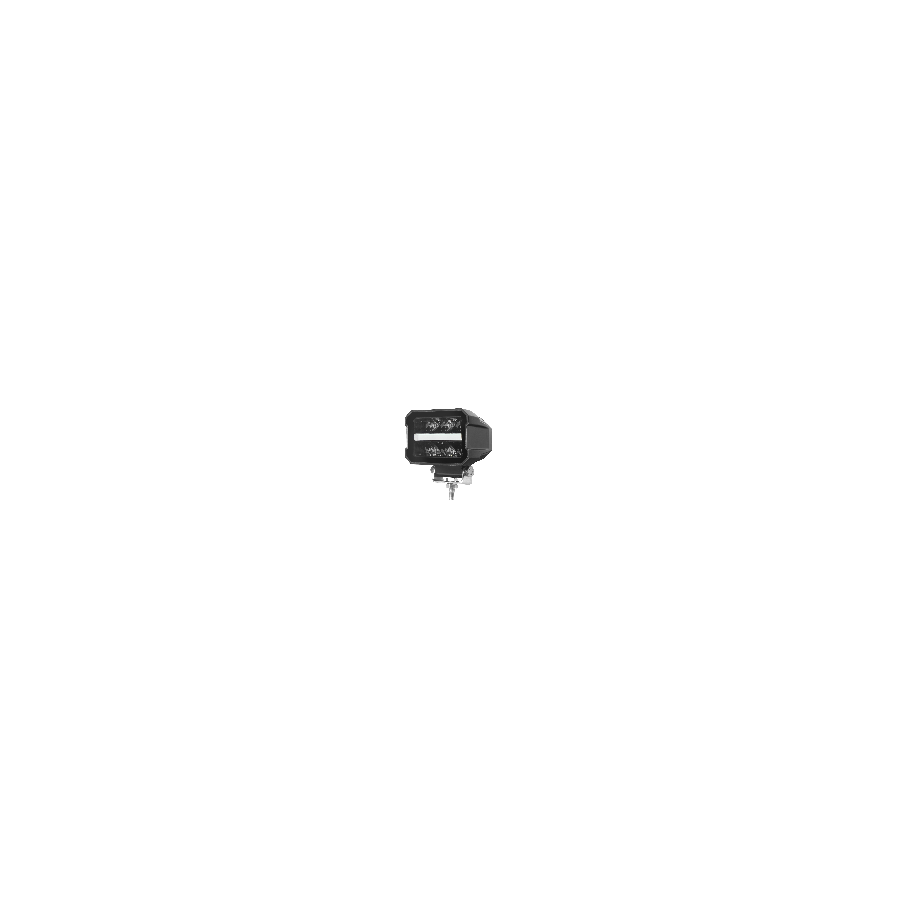

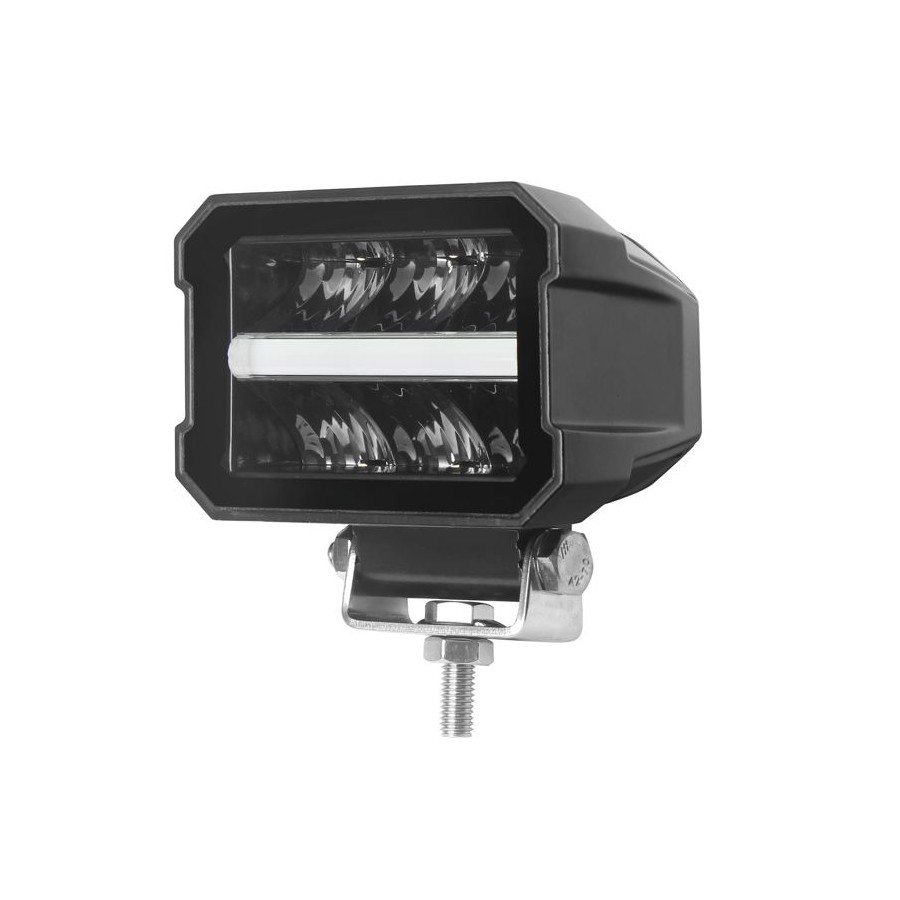

L3422 has features such as: line position, driving light. The lamp has 6 + 6 LEDs. The number of LM is 2200 LM. L3422 characterized by a power of 3 W, 25 W. L3422 is a certified product. According to standards such as ECE R10, ECE R148, ECE R149. Moreover, it is made of materials: Lens: PC, Housing: AL. Fastening is screw. The voltage is 12 V/24 V. The product is packaged in the following configuration cart. dim.: 142x155x114 mm, lampy weight: 530 g, 20 pcs/bulk box.
Instruction
• It should be used exclusively in accordance with intended use.
• Mount exclusively in specialized workshops. • The connection between the lamp and vehicle’s installation should be isolated with heat-shrink tube, or, alternatively, with isolating tape, to avoid getting water and moisture to the copper wire of the lamp, which can damage electronic components. When it comes to lamp and plug, the plug should be mounted safely. • Do not cut off tinned ends.
• Lamps must be installed only in accordance with UNECE regulations
Specification
| LED quantity | 6 + 6, 2200 LM |
| Material | Lens: PC, Housing: AL |
| Mounting | screw |
| Function | line position, driving light |
| Watt | 3 W, 25 W |
| Voltage | 12 V/24 V |
| Certyficates | ECE R10, ECE R148, ECE R149 |

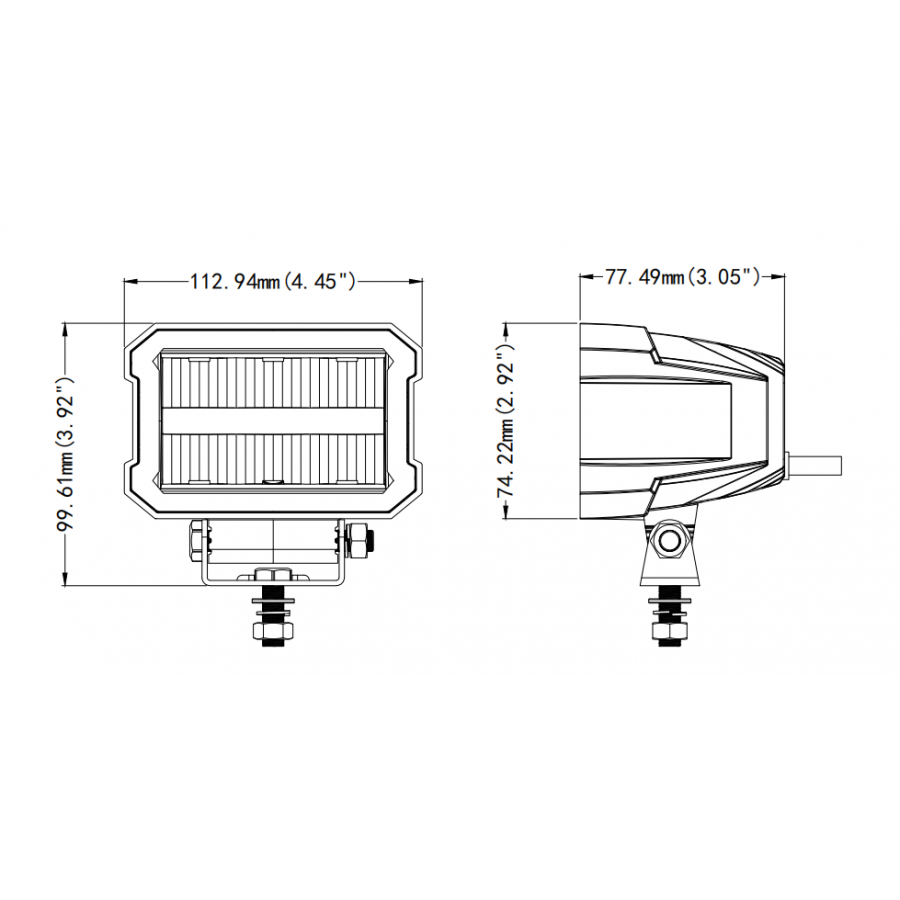

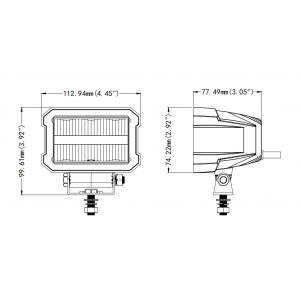

| Packing | cart. dim.: 142x155x114 mm, lampy weight: 530 g, 20 pcs/bulk box |
| WIRE | 300 mm |
