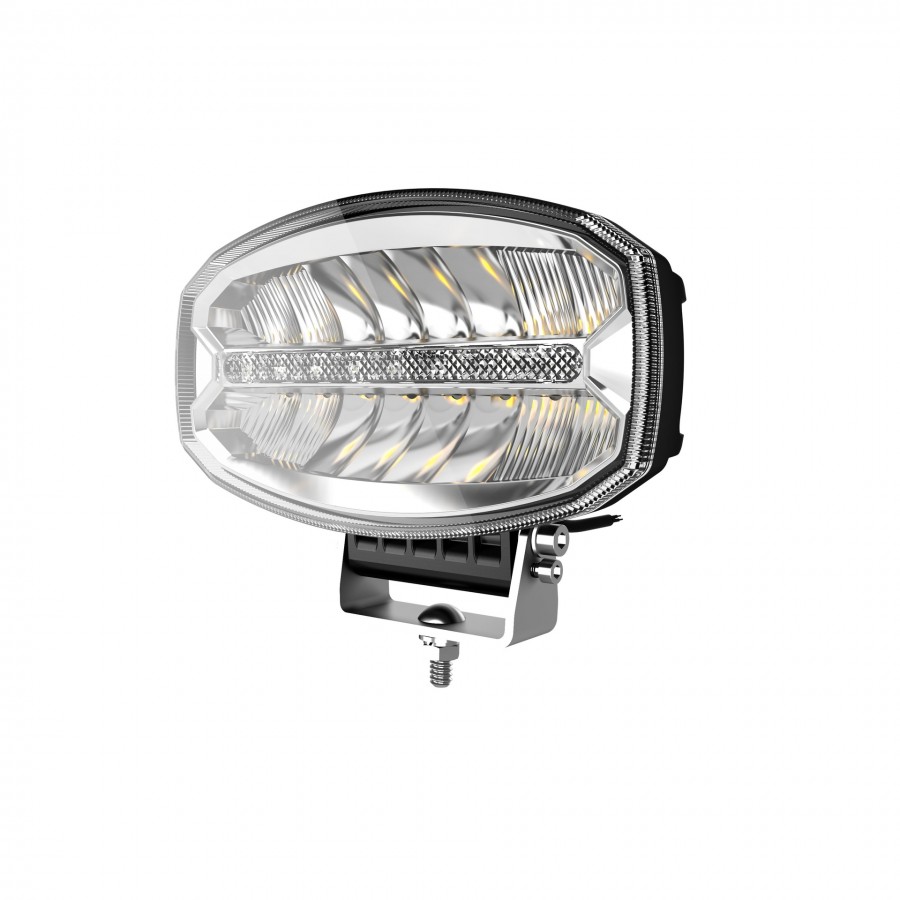

L3415 has features such as: DRL, Driving lamp. The lamp has 16 LEDs. The number of LM is 5800 LM. L3415 characterized by a power of 11,8 W, 58 W. L3415 is a certified product. According to standards such as ECE R10, ECE R87, ECE R112. Moreover, it is made of materials: Lens: PC, Housing: AL. Fastening is screw. The voltage is 12 V/24 V. The product is packaged in the following configuration cart. dim: 280x220x130 mm, lamp weight: 2300 g, 8 pcs/bulk box.
Instruction
• It should be used exclusively in accordance with intended use. • Mount exclusively in specialized workshops.
• The connection between the lamp and vehicle’s installation should be isolated with heat-shrink tube, or, alternatively, with isolating tape, to avoid getting water and moisture to the copper wire of the lamp, which can damage electronic components. When it comes to lamp and plug, the plug should be mounted safely.
• Do not cut off tinned ends. • Lamps must be installed only in accordance with UNECE regulations
Specification
| LED quantity | 16, 5800 LM |
| Material | Lens: PC, Housing: AL |
| Mounting | screw |
| Function | DRL, Driving lamp |
| Watt | 11,8 W, 58 W |
| Voltage | 12 V/24 V |
| Certyficates | ECE R10, ECE R87, ECE R112 |

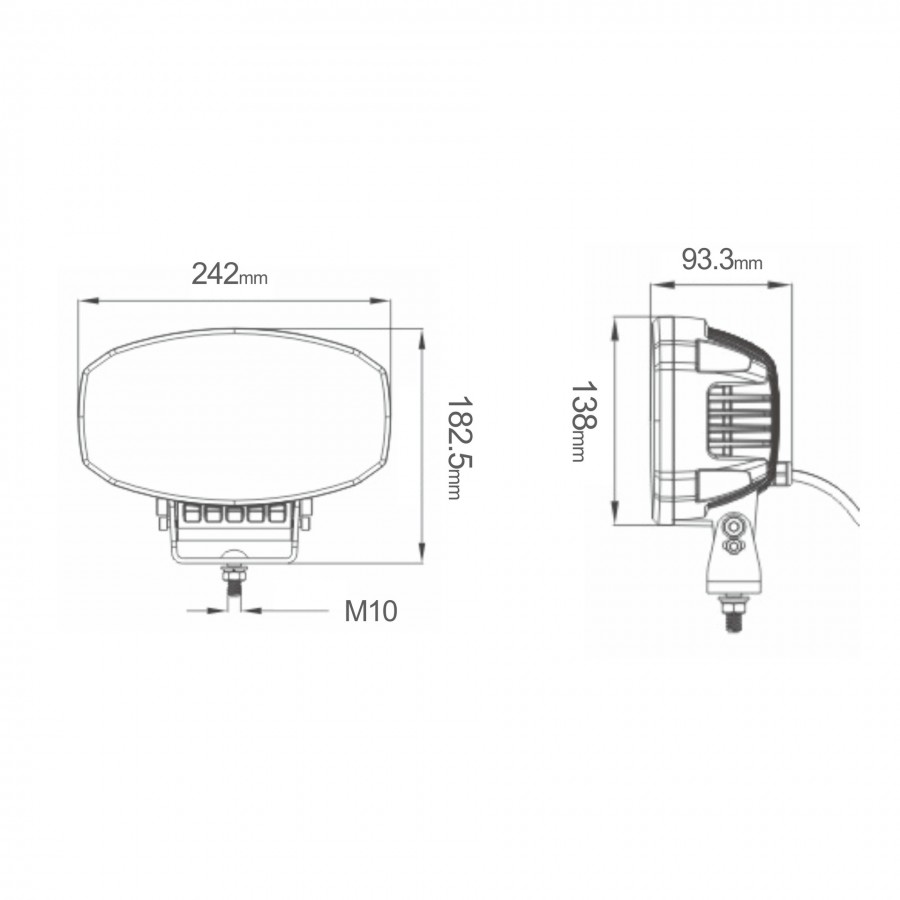

| Packing | cart. dim: 280x220x130 mm, lamp weight: 2300 g, 8 pcs/bulk box |
| WIRE | 600 mm |
