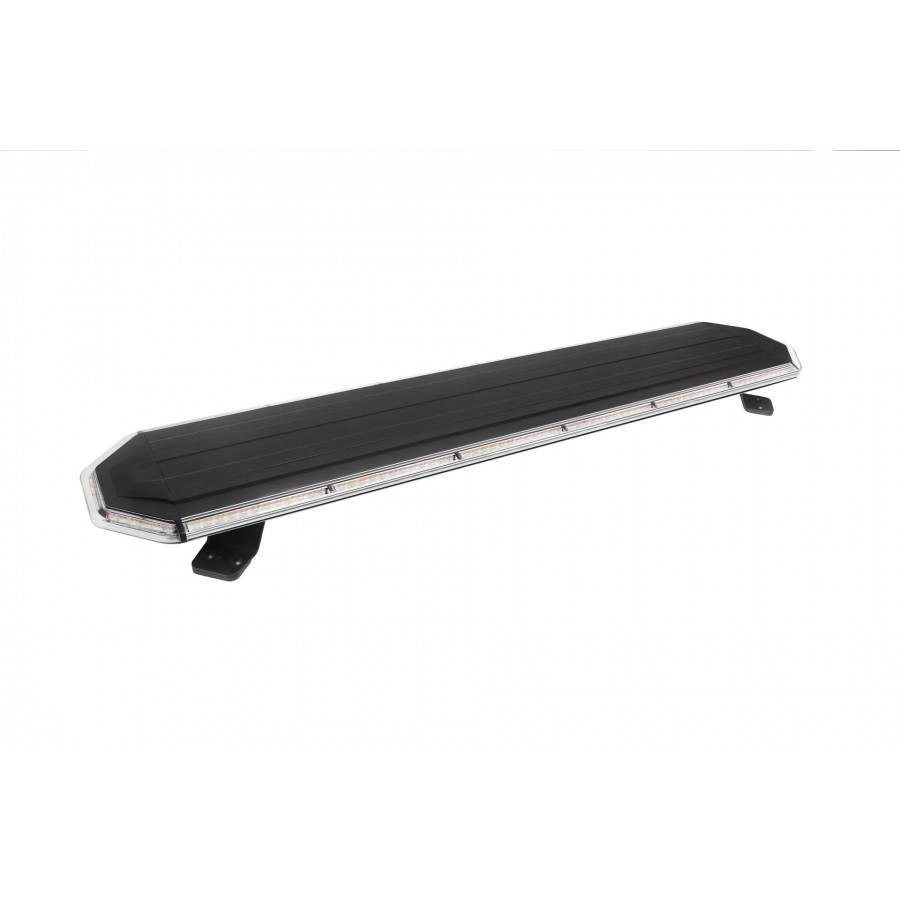

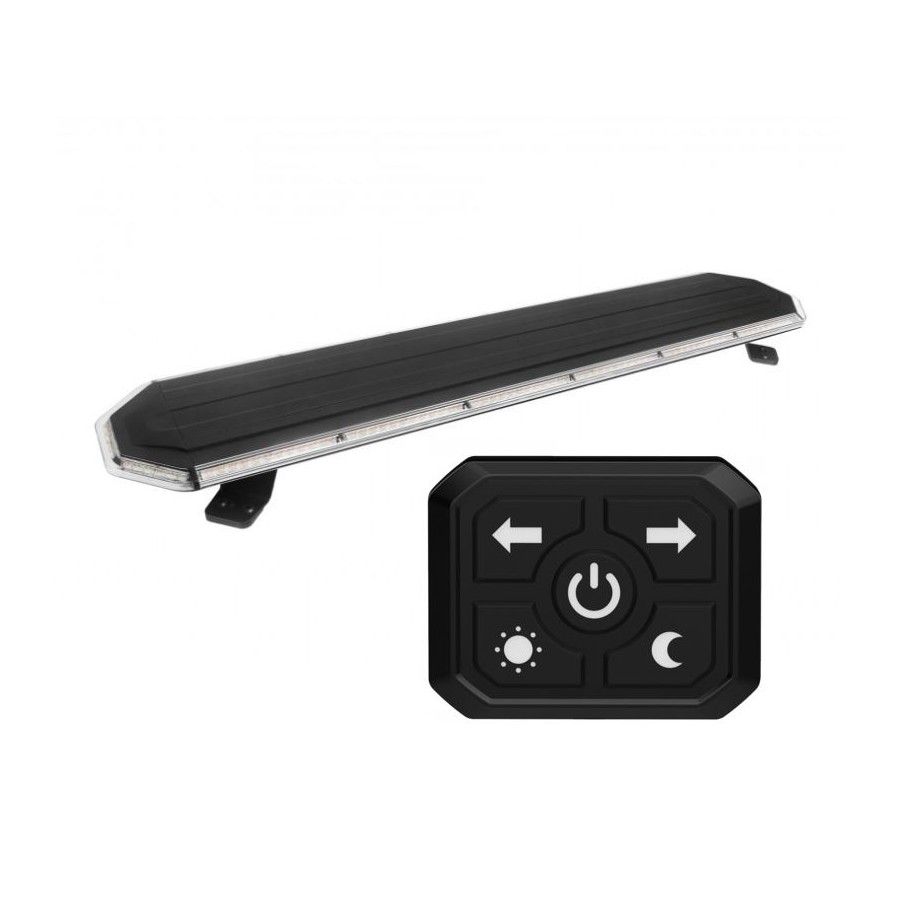

BLK0042 has features such as: 4 warning flashes,, two level of intensity, day and night, control box. The lamp has 204 LEDs. BLK0042 characterized by a power of 106 W. BLK0042 is a certified product. According to standards such as ECE R65, ECE R10. Moreover, it is made of materials: Lens: PC, Housing: aluminium. Fastening is screws. The voltage is 12 V/24 V. The product is packaged in the following configuration cart. dim.: 1575x275x90 mm , lamp weight: 7300 g, 1 pcs/bulk box.
Instruction
·• It should be used exclusively in accordance with intended use.
• Mount exclusively in specialized workshops. • The connection between the lamp and vehicle’s installation should be isolated with heat-shrink tube, or, alternatively, with isolating tape, to avoid getting water and moisture to the copper wire of the lamp, which can damage electronic components. When it comes to lamp and plug, the plug should be mounted safely. • Do not cut off tinned ends.
• Lamps must be installed only in accordance with UNECE regulations
Specification
| LED quantity | 204 |
| Material | Lens: PC, Housing: AL |
| Mounting | screws |

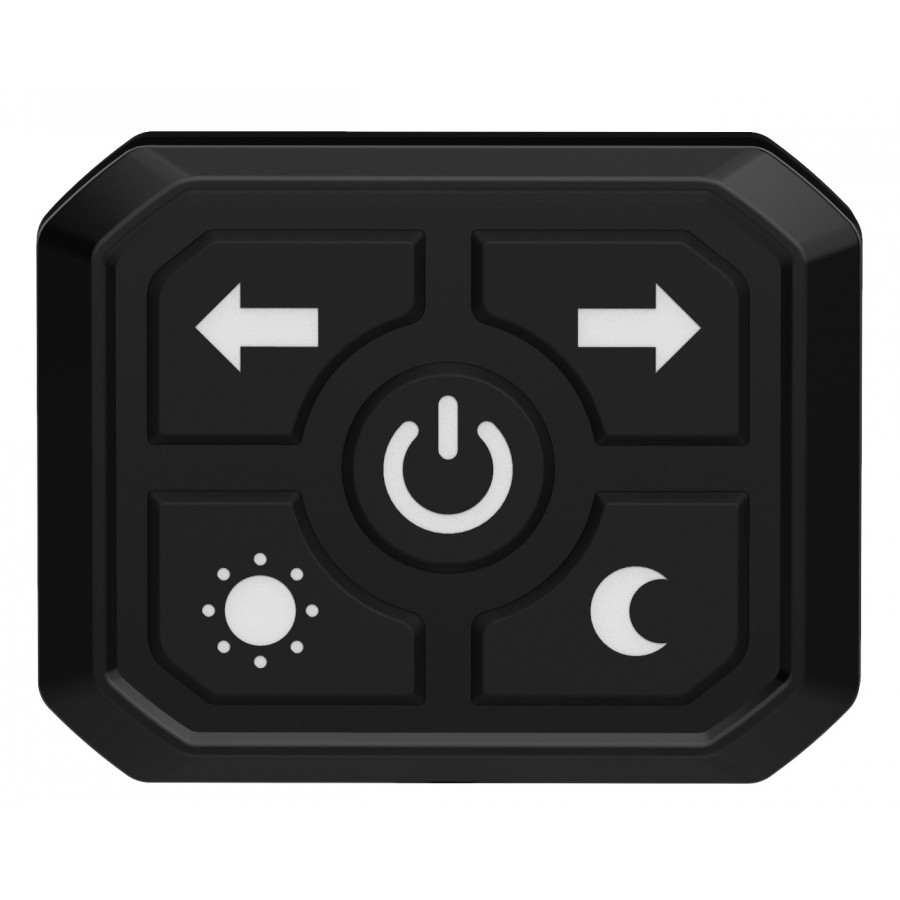

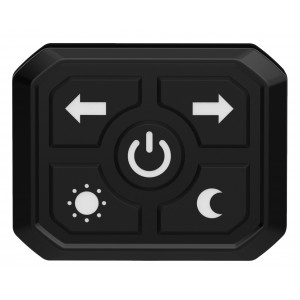

| Function | 4 warning flashes,, two level of intensity, day and night, control box |
| Watt | 106 W |
| Voltage | 12 V/24 V |
| Certyficates | ECE R65, ECE R10 |
| Packing | cart. dim.: 1575x275x90 mm , lamp weight: 7300 g, 1 pcs/bulk box |
| WIRE | 5000 mm |
