Booster Start 625
Description:

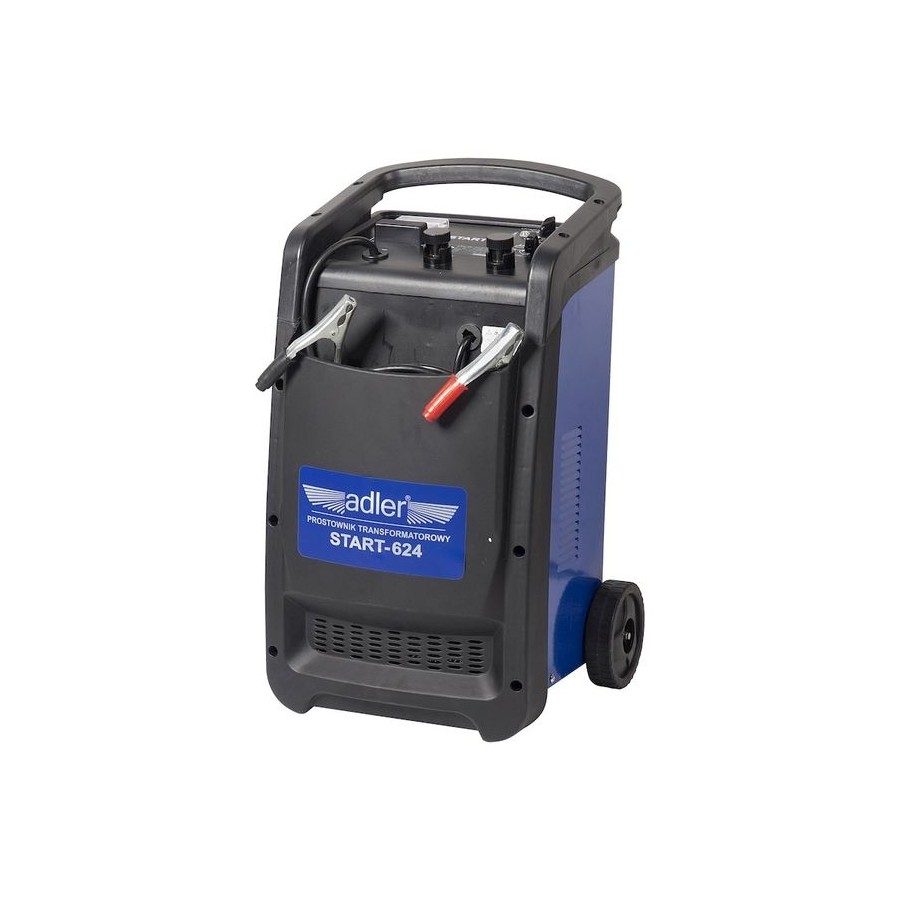

The transformer rectifier E2624 is a device for charging lead-acid batteries. It is characterized by ease of use and reliability. The device casing meets the requirements of the IP20 protection class in accordance with the PN-EN 60529: 2003 standard.
E2624 has an ammeter that shows the current charging current. Device equipped with a start-up function. It has a charging timer and a six-position switch for the charging current.
A carefully wound transformer ensures stable and safe charging of the batteries.
Technical data:
Supply voltage: 230 V
Power consumption: 2.0 ~ 12 kW
Charging voltage: 12 / 24V
Charging current: 60 A.
Starting current: 540 A (1V / e)
Number of charging modes: 6
Battery capacity (Ah - 15h): 60 ~ 1000
Protection: 20 A.
Housing protection class (according to PN-EN 60529: 2003): IP20
Type of starting of charging connectors: clamps (+) / (-)
Weight (kg): 23.8
Dimensions (lxdxh): 35 x 28 x 57 cm
