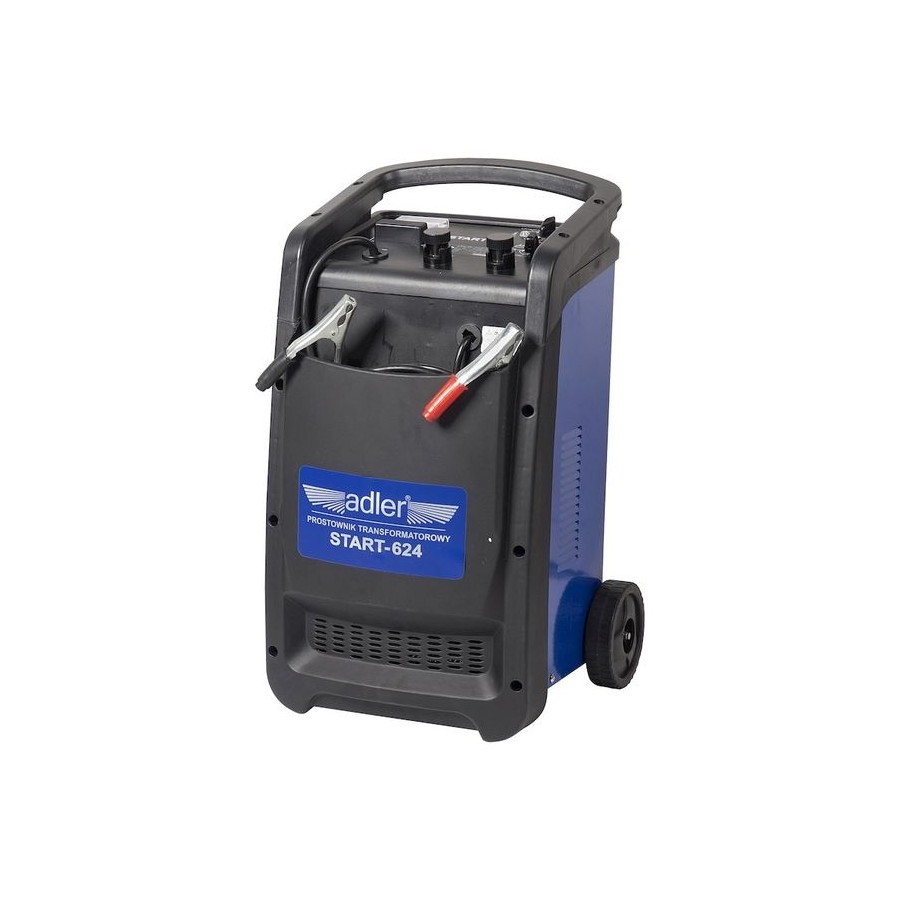

Rectifier Start 625 E2624

  • NUMBER: E2624
  • EAN: 2000010030965
  • Code CN: 85366990
  • Weight: 26.60 KG
Ask a question

Booster Start 625

Description:

The transformer rectifier E2624 is a device for charging lead-acid batteries. It is characterized by ease of use and reliability. The device casing meets the requirements of the IP20 protection class in accordance with the PN-EN 60529: 2003 standard.

E2624 has an ammeter that shows the current charging current. Device equipped with a start-up function. It has a charging timer and a six-position switch for the charging current.

A carefully wound transformer ensures stable and safe charging of the batteries.

Technical data:

Supply voltage: 230 V

Power consumption: 2.0 ~ 12 kW

Charging voltage: 12 / 24V

Charging current: 60 A.

Starting current: 540 A (1V / e)

Number of charging modes: 6

Battery capacity (Ah - 15h): 60 ~ 1000

Protection: 20 A.

Housing protection class (according to PN-EN 60529: 2003): IP20

Type of starting of charging connectors: clamps (+) / (-)

Weight (kg): 23.8

Dimensions (lxdxh): 35 x 28 x 57 cm
